LTM Probes in Flotation
Banks, Tanks, Columns and Sumps

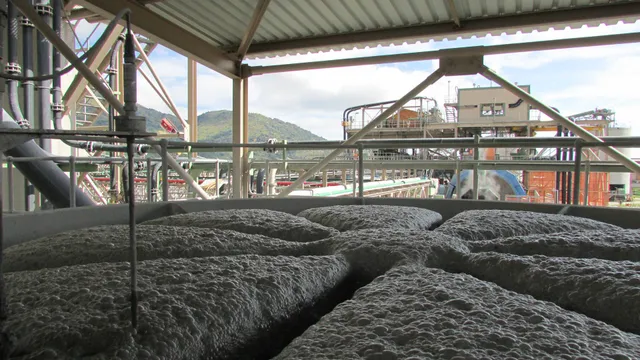

LTM probes are typically installed in flotation banks, individual flotation cells or in columns and sumps to provide consistent accurate pulp level measurement. The conductive LTM pulp level monitoring probe technology dramatically reduces the complication of slurry level interface monitoring under a wide range of froth and flotation conditions.

Level Measurements in Flotation Cells
Level Measurements
Columns & Sumps
Level Measurements

Product ExplanationLittle maintenance is required on the system, much less than the conventional

Probe Explanation

The LTM conductive probe is the most up-to-date innovation for...

More details

Probe Components

Standard probe material of construction is 316 stainless steel. In...

More details

Operational Comparison

A one hour strip-chart example given below from the actual...

More details

Economical Benefits

  • No moving parts
  • Increased recoveries (payback can be weeks)
  • Consistent concentrate grades (lower shipping costs, increased NSR)
  • Lower housekeeping issues from tank overflow
  • No bracket maintenance necessary
  • Consistent plant stability

Customer Experiences and feedback

  • Reliable signals
  • Consistently accurate pulp level detection
  • Good readings even with solids buildup (buildup has no influence on measuring results)
  • Circuit stability: less pulp level fluctuation, less surging
  • Ease of maintenance
  • Less dart valve damage

Mills Tested, Using LTM ProbesProbes installed internationally in various mills and mines since 2010.

Testimonial I

Norilsk Nkomati Nickel, SA

Testimonial II

Kansanshi Copper, Zambia

Our Social Media Rating
We are rated 4.99 / 5.00

Antofagasta Los Pelambres, Chile

Testimonial III

Masan Nui Phao, Vietnam

Testimonial IV

Probe length availability

Bank Cells Length typically 1m
Tank Cells Length typically 1.5m
Probe & Column Cells Length typically 2-3m

Proven Reliability

The LTM level probe has proven its reliability in various concentrator environments, being used in Column, Bank and Tank flotation cells. The probes have also been tested in various Sump environments, which include Mill feed Sumps, Mixed Concentrate Sumps and Final Concentrate Sumps.
